Crawler shot blasting machine Tumbling rubber belt shot blasting machines ideal to tumble in bulk loads small and medium sizes parts.
This small shot blasting machine uses wear proof rubber belt to load castings.
The tumble blast machines with rubber belt conveyor are employed for the surface treatment of batches of parts, loaded manually or automatically by means of a hydraulic skip loader.
The belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement the whole surfaces of the parts are exposed to the shots thrown by the turbines.
The offloading of the parts is obtained by the rotation of the belt conveyor in the opposite sense. Parts can fall directly into the empty container or through an offloading belt or vibrating conveyor.
The max loading capacity can vary from 200 to 600 Kilos in weight.
1.Introduction of crawler shot blasting machine
Crawler shot blasting machine Tumbling rubber belt shot blasting machines ideal to tumble in bulk loads small and medium sizes parts.
This small shot blasting machine uses wear proof rubber belt to load castings.
The tumble blast machines with rubber belt conveyor are employed for the surface treatment of batches of parts, loaded manually or automatically by means of a hydraulic skip loader.
The belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement the whole surfaces of the parts are exposed to the shots thrown by the turbines.
The offloading of the parts is obtained by the rotation of the belt conveyor in the opposite sense. Parts can fall directly into the empty container or through an offloading belt or vibrating conveyor.
The max loading capacity can vary from 200 to 600 Kilos in weight.
2. Specification of crawler shot blasting machine
Type | Q326 | Q3210 | QR3210 |
Productivity(T/h) | 0.6-1.2 | 3-5 | 1.5-2.5 |
Loading weight(kg) | 200 | 800 | 600 |
The maximum weight of one piece | 10 | 30 | 30 |
Diameter of roller(mm) | φ650 | φ1000 | φ1000 |
Available capacity(m³) | 0.15 | 0.4 | 0.3 |
Pill impelling volume(kg/min) | 125 | 360 | 250 |
Dedusting air volume(m³/h) | 2200 | 6000 | 5000 |
Power dissipation(kw) | 12.6 | 32.6 | 24.3 |
Appearance dimension(mm) | 3200*1520*3500 | 4290*1900*4500 | 5850*1950*4600 |
We can design and manufacture all kinds of non-standard crawler shot blasting machine according to customer different workpiece detail requirement,weight and productivity.
2. Details of crawler shot blasting machine

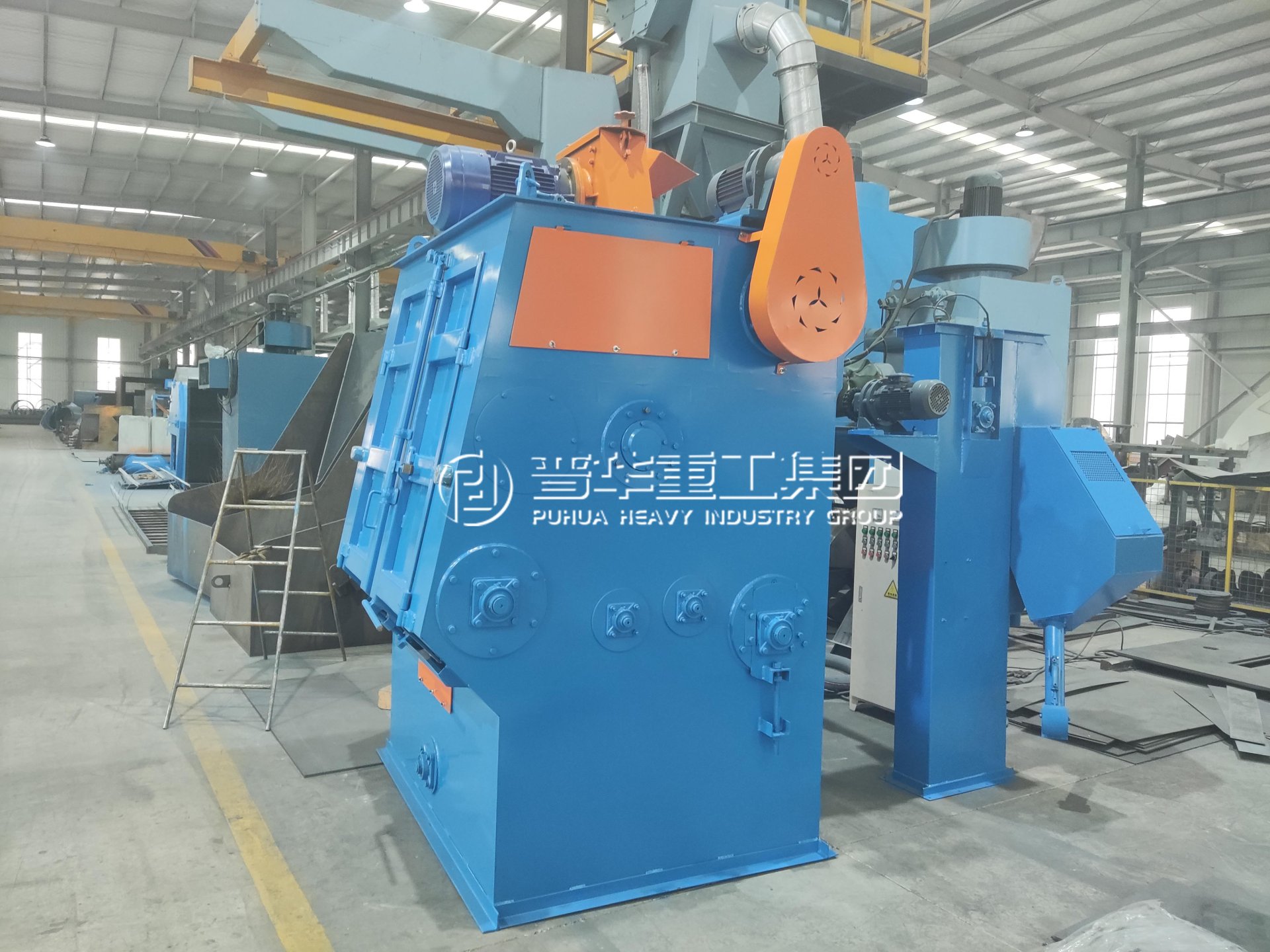

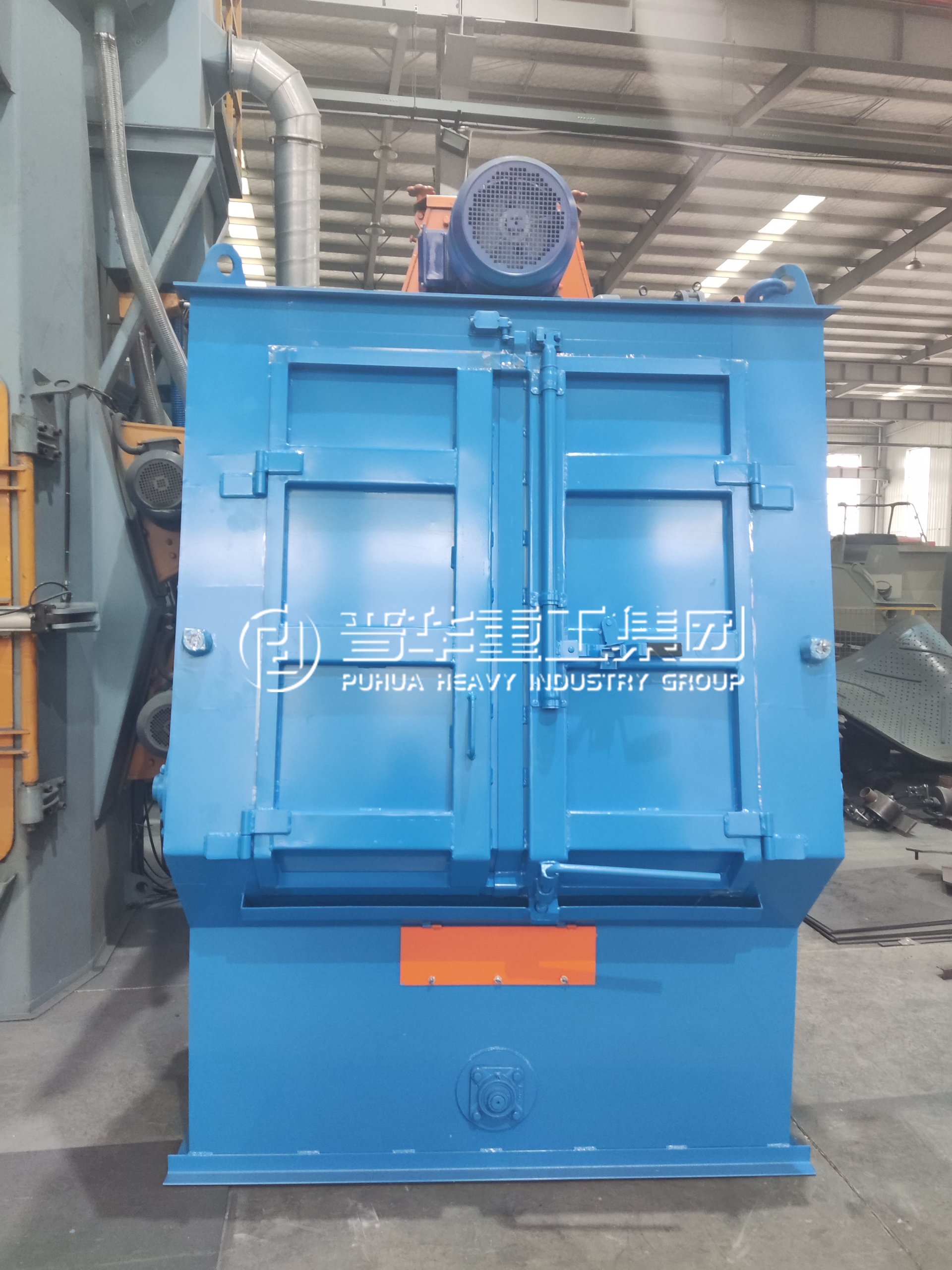

These pictures will better help you understand crawler shot blasting machine.
3. Certification of crawler shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality crawler shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation crawler shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of crawler shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by crawler shot blasting machine?
surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
If you are interested in crawler shot blasting machine, you are welcome to contact us.
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
