concrete shot blasting machine concrete shot blasting machine applied in highway surface cleaning blasts the pills on the road surface at high speed and certain angle by the method of machinery , make pills impect the surface of the road and make the road surface roughness, reach the effect of removing residuum,at the same time,dust collector will produce negative pressure to make pills and impurities and dust dust recovery after air cleaning, intact pills will automatically be recycled to used, and impurities and dust will drop into the dust collecting box.
1.Introduction of concrete shot blasting machine
concrete shot blasting machine concrete shot blasting machine applied in highway surface cleaning blasts the pills on the road surface at high speed and certain angle by the method of machinery , make pills impect the surface of the road and make the road surface roughness, reach the effect of removing residuum,at the same time,dust collector will produce negative pressure to make pills and impurities and dust dust recovery after air cleaning, intact pills will automatically be recycled to used, and impurities and dust will drop into the dust collecting box.
2. Specification of concrete shot blasting machine
Type | PHLM-270 | PHLM-600 | PHLM-800 |
Effective blasting width(mm) | 270 | 600 | 800 |
Traveling speed(m/min) | 0.5-20 | 0.5-20 | 0.5-20 |
Production capacity（m²/h) | 150 | 300 | 400 |
Total power(KW) | 11 | 2*11 | 2*15 |
Overall dimension(mm) | 1000*300*1100 | 2050*780*1150 | 2050*980*1150 |
Number of throws | 1 | 2 | 2 |
We can design and manufacture all kinds of non-standard concrete shot blasting machine according to customer different workpiece detail requirement,weight and productivity.
2. Details of concrete shot blasting machine

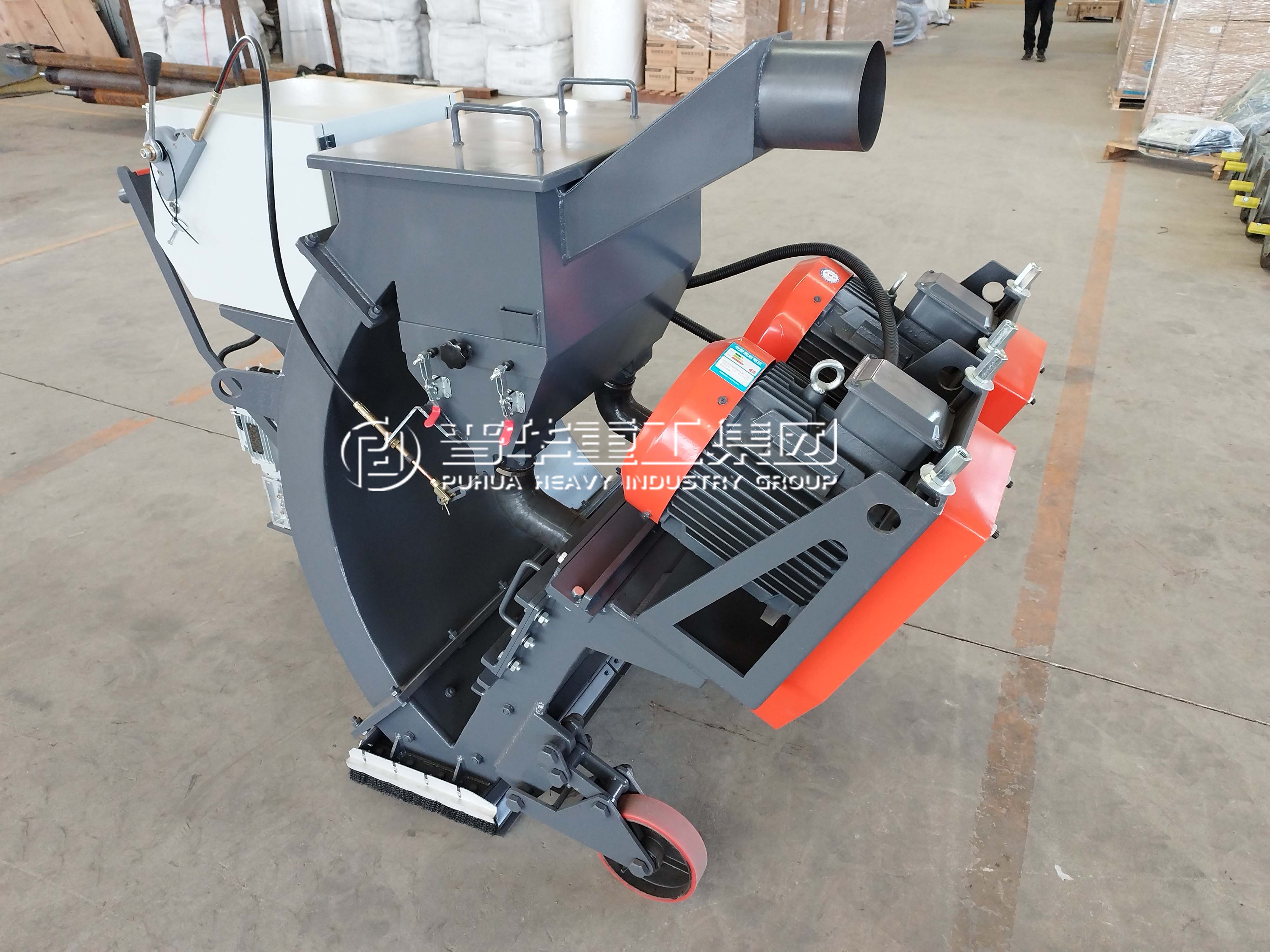

These pictures will better help you understand concrete shot blasting machine.
3. Certification of concrete shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality concrete shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation concrete shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of concrete shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by concrete shot blasting machine?
To clean and prepare surfaces | such as steel, concrete and asphalt.
To remove top layers | like paint and epoxy.
To remove markings & rubber | from highways, runways, industrial floors and more.
To improve skid resistance | on surfaces such as sidewalks, bike paths, roads and runways.
To generate optical and aesthetics effects | on surfaces like roads, highways and runways.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
If you are interested in concrete shot blasting machine, you are welcome to contact us.
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
