Hanging chain type shot blasting machine Q38 series Hanging Chain Shot Blasting Machine uses the method of multistep fixed-point rotation blasting and cleaning, removing the sand and oxide skin on the casting surface, to reappear metal color. It is mainly used in car accessories and bolster, side frame, coupling, and frame of trail hook vehicle parts, at the same time also can clean the casting and small batch workpiece with similar size.
1.Introduction of hanging chain type shot blasting machine
Hanging chain type shot blasting machine Q38 series Hanging Chain Shot Blasting Machine uses the method of multistep fixed-point rotation blasting and cleaning, removing the sand and oxide skin on the casting surface, to reappear metal color. It is mainly used in car accessories and bolster, side frame, coupling, and frame of trail hook vehicle parts, at the same time also can clean the casting and small batch workpiece with similar size.
2. Specification of hanging chain type shot blasting machine
Type | Q383/Q483 | Q385/Q485 | Q4810 |
Cleaning workpieces size(mm) | φ800*1200 | φ1000*1500 | φ1000*2500 |
Number of work position | 2 | 2 | 2 |
Quantity of impeller head | 4 | 4 | 6 |
Impeller head volume(kg/min) | 4*250 | 4*250 | 6*250 |
Impeller head power(kw) | 4*15 | 4*15 | 6*15 |
Max hangering weight(kg) | 300 | 500 | 1000 |
Productivity hanger(/h) | 30~60 | 30~60 | 40~60 |
Size of the cleaning room(mm) | 7680*2000*2900 | 7680*2000*2900 | 7680*2000*3800 |
Total power(kw) | 73.15 | 73.15 | 114.72 |
We can design and manufacture all kinds of non-standard hanging chain type shot blasting machine according to customer different workpiece detail requirement,weight and productivity.
2. Details of hanging chain type shot blasting machine

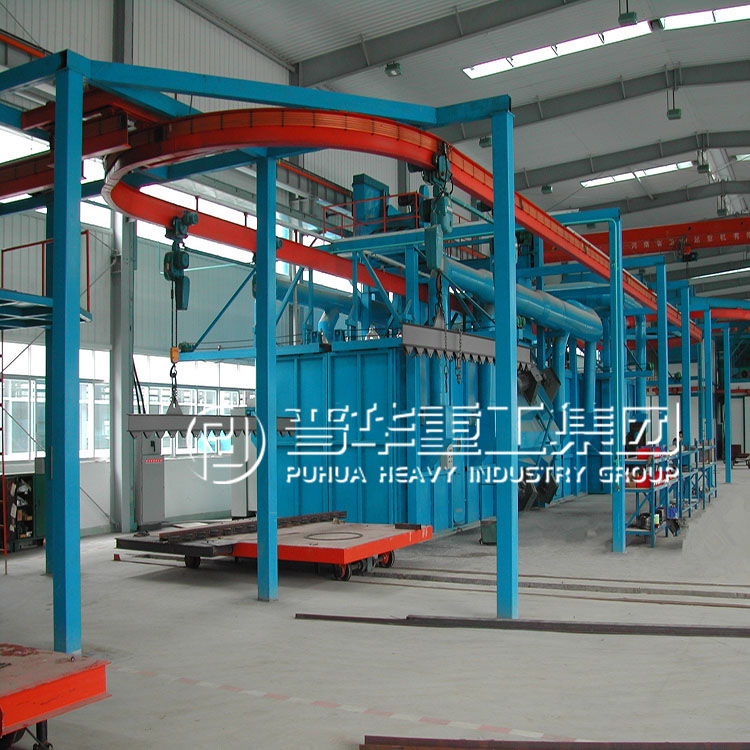

These pictures will better help you understand hanging chain type shot blasting machine.
3. Certification of hanging chain type shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality hanging chain type shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation hanging chain type shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of hanging chain type shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by hanging chain type shot blasting machine?
castings,forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
If you are interested in hanging chain type shot blasting machine, you are welcome to contact us.
