Q69 steel plate shot blasting machine is used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping, car, motorcycle, bridge, machinery, etc.
By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.
.Introduction of steel plate shot blasting machine
Q69 steel plate shot blasting machine is used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping, car, motorcycle, bridge, machinery, etc.
By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.
2. Specification of steel plate shot blasting machine
Type | Q69(customizable) | |
| Minimum | Maximum | |
The effective cleaning width(mm) | 800 | 4000 |
The room feed-in size(mm) | 1000*400 | 4200*400 |
The length of cleaning workpiece(mm) | 1200 | 12000 |
The speed of wheel conveyer(m/min) | 0.5 | 4 |
The thicksness of cleaning steelsheet(mm) | 3-100 | 4.4-100 |
The section steel specification(mm) | 800*300 | 4000*300 |
The quantity of shot blasting(kg/min) | 4*180 | 8*360 |
The first enclosed quantity(kg) | 4000 | 11000 |
Roll brush adjusting height(mm) | 200 | 900 |
Airness capacity(m³/h) | 22000 | 38000 |
Exterior size(mm) | 25014*4500*9015(customizable) | |
Total power(except for dust cleaning)(kw) | 90 | 293.6 |
We can design and manufacture all kinds of non-standard steel plate shot blasting machine according to customer different workpiece detail requirement,weight and productivity.
2. Details of steel plate shot blasting machine

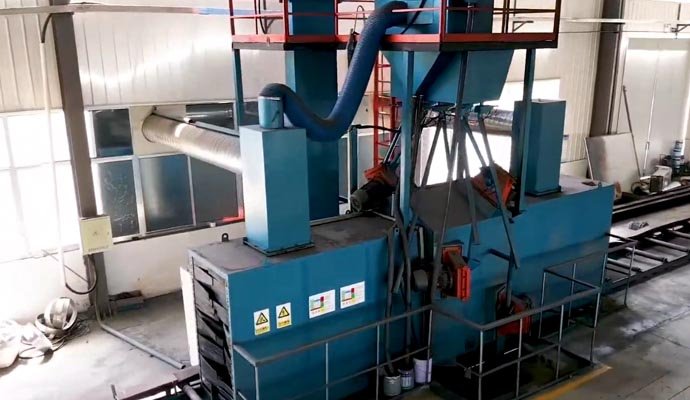

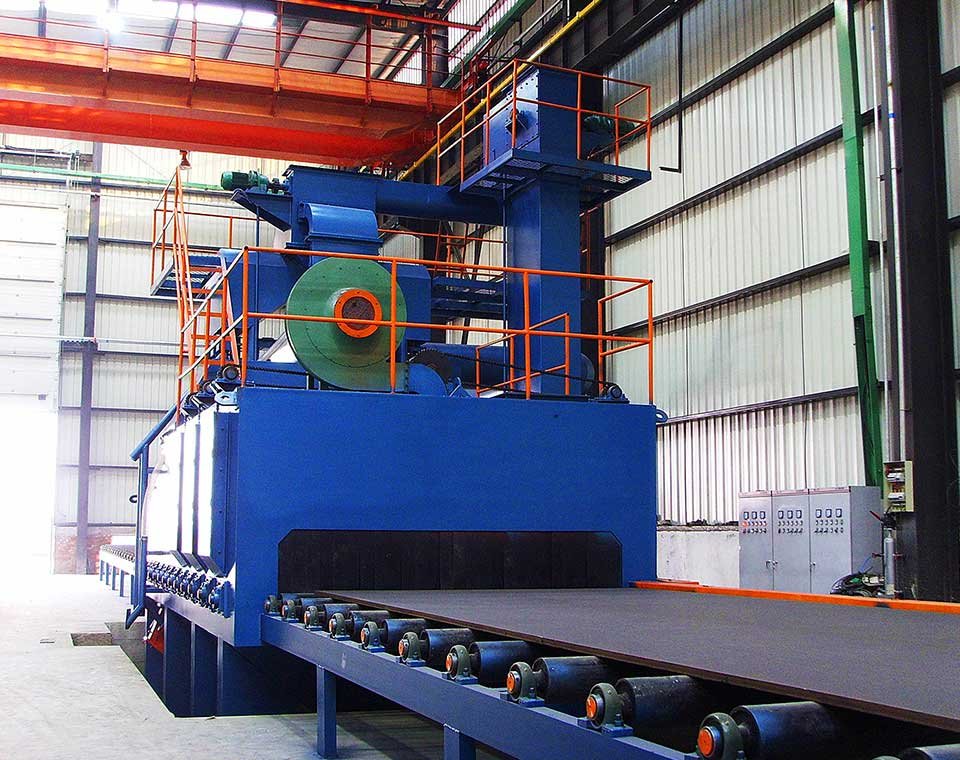

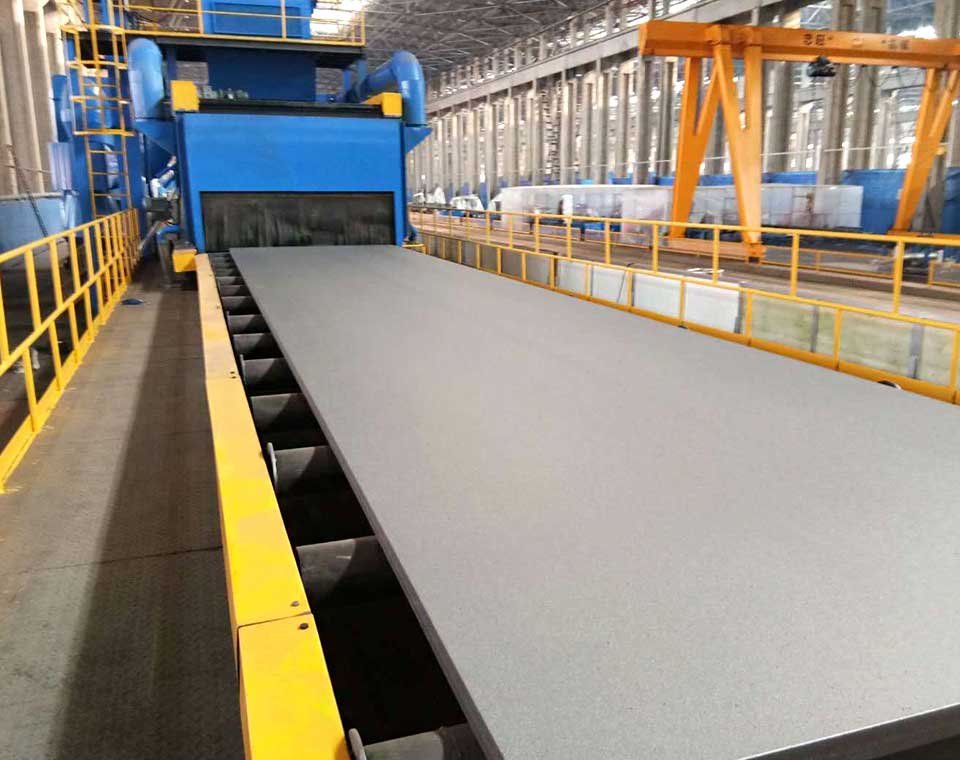

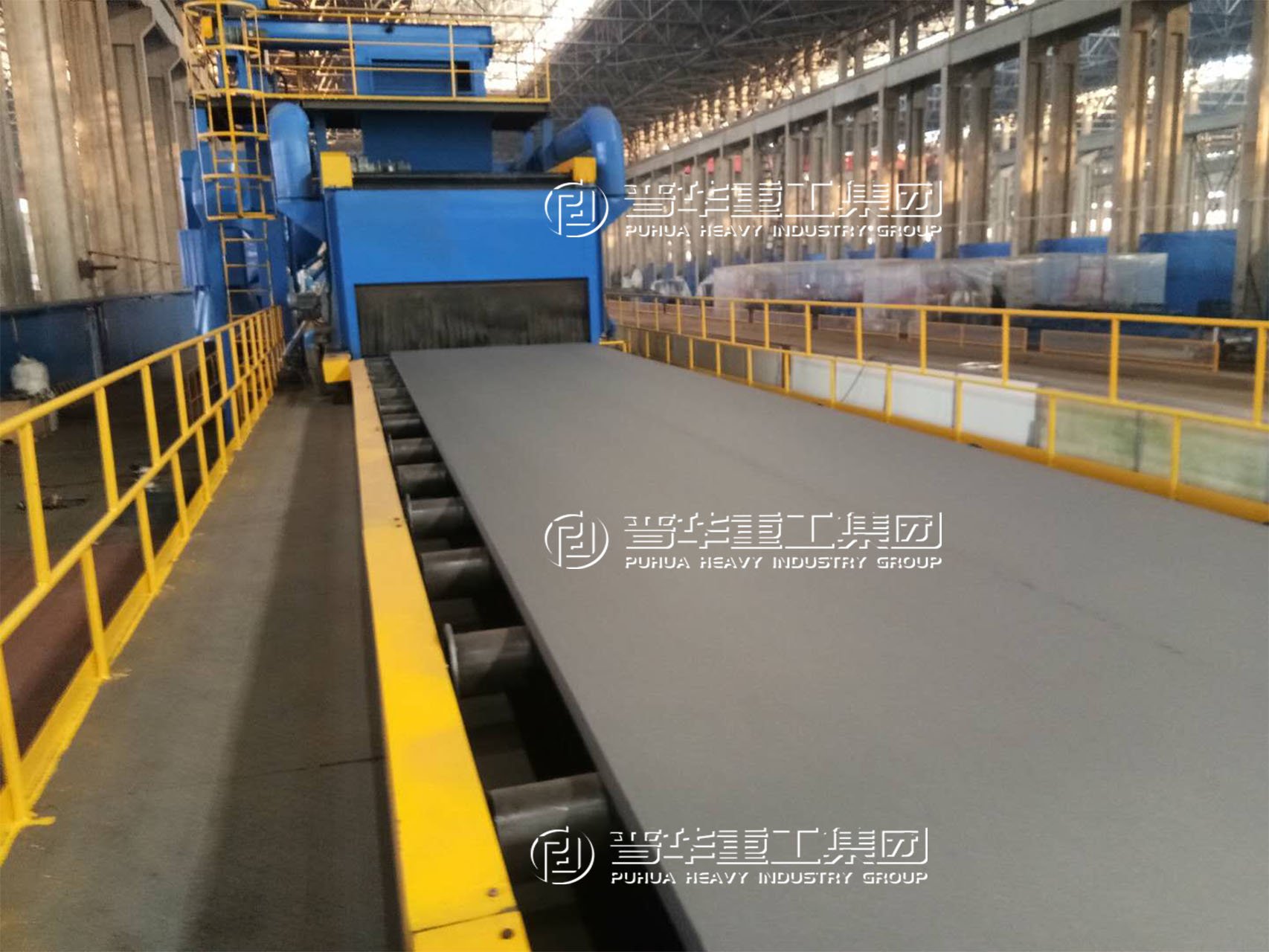

These pictures will better help you understand steel plate shot blasting machine.
3. Certification of steel plate shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality steel plate shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation steel plate shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of steel plate shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by steel plate shot blasting machine?
Steel sheet, U bar, bridge professions, different structural parts and so on.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
If you are interested in steel plate shot blasting machine, you are welcome to contact us.
