1.Introduction of floor shot blasting machine
Floor shot blasting machine floor shot blasting machine adopts this way to get blasting by medium (Steel shot or steel grit) to a very high speed and a certain angle to the workpiece surface, this shot blasting medium can clear the workpieces’ surface, and then inside the machine the medium and impurities will be recovered respectively through the vacuum cleaner air and can be reused again.
Our equipment construction is simple and convenient operation, do not need to closed road for construction, the construction cost is low, the equipment has high mobility. The machine is equipped with dust-removal unit, in the process of the construction, it can be done no dust and soilless, no pollution, and the medium can be recycled.
2. Specification of floor shot blasting machine
Type | PHLM-270 | PHLM-600 | PHLM-800 |
Effective blasting width(mm) | 270 | 600 | 800 |
Traveling speed(m/min) | 0.5-20 | 0.5-20 | 0.5-20 |
Production capacity（m²/h) | 150 | 300 | 400 |
Total power(KW) | 11 | 2*11 | 2*15 |
Overall dimension(mm) | 1000*300*1100 | 2050*780*1150 | 2050*980*1150 |
Number of throws | 1 | 2 | 2 |
We can design and manufacture all kinds of non-standard floor shot blasting machine according to customer different workpiece detail requirement,weight and productivity.
3. Details of floor shot blasting machine

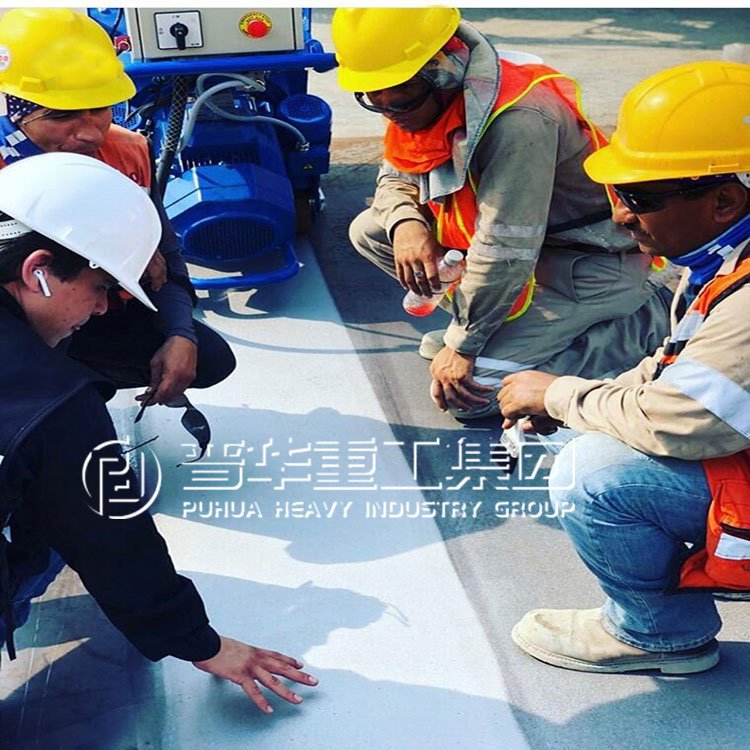

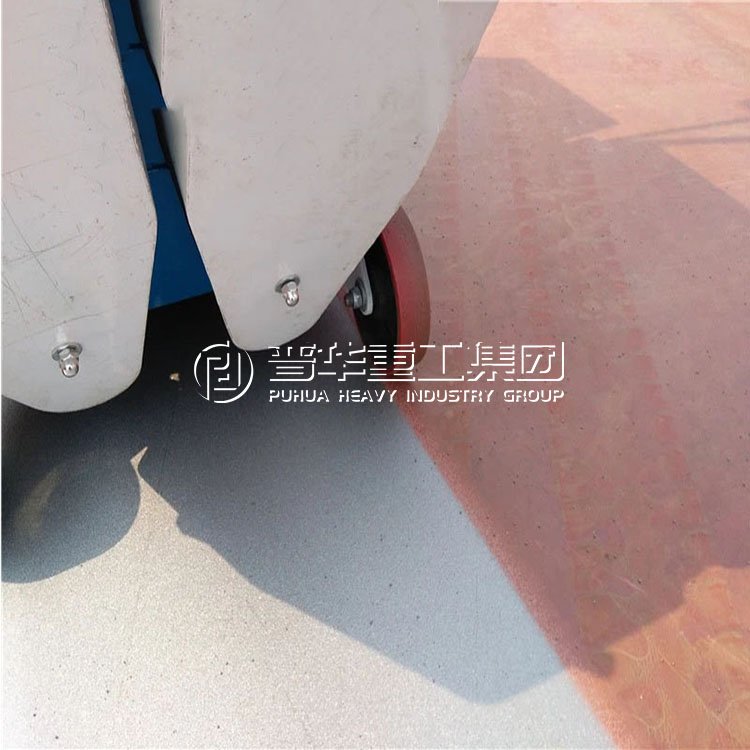

These pictures will better help you understand floor shot blasting machine.
4. Certification of floor shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality floor shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
5.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation floor shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of floor shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by floor shot blasting machine?
To clean and prepare surfaces | such as steel, concrete and asphalt.
To remove top layers | like paint and epoxy.
To remove markings & rubber | from highways, runways, industrial floors and more.
To improve skid resistance | on surfaces such as sidewalks, bike paths, roads and runways.
To generate optical and aesthetics effects | on surfaces like roads, highways and runways.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
If you are interested in floor shot blasting machine, you are welcome to contact us.
