Tumble blast machine this series is used for surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces. Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.
1.Introduction of tumble blast machine
Tumble blast machine this series is used for surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces. Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.
2. Specification of tumble blast machine
Type | Q326 | Q3210 | QR3210 |
Productivity(T/h) | 0.6-1.2 | 3-5 | 1.5-2.5 |
Loading weight(kg) | 200 | 800 | 600 |
The maximum weight of one piece | 10 | 30 | 30 |
Diameter of roller(mm) | φ650 | φ1000 | φ1000 |
Available capacity(m³) | 0.15 | 0.4 | 0.3 |
Pill impelling volume(kg/min) | 125 | 360 | 250 |
Dedusting air volume(m³/h) | 2200 | 6000 | 5000 |
Power dissipation(kw) | 12.6 | 32.6 | 24.3 |
Appearance dimension(mm) | 3200*1520*3500 | 4290*1900*4500 | 5850*1950*4600 |
We can design and manufacture all kinds of non-standard tumble blast machine according to customer different workpiece detail requirement,weight and productivity.
2. Details of tumble blast machine

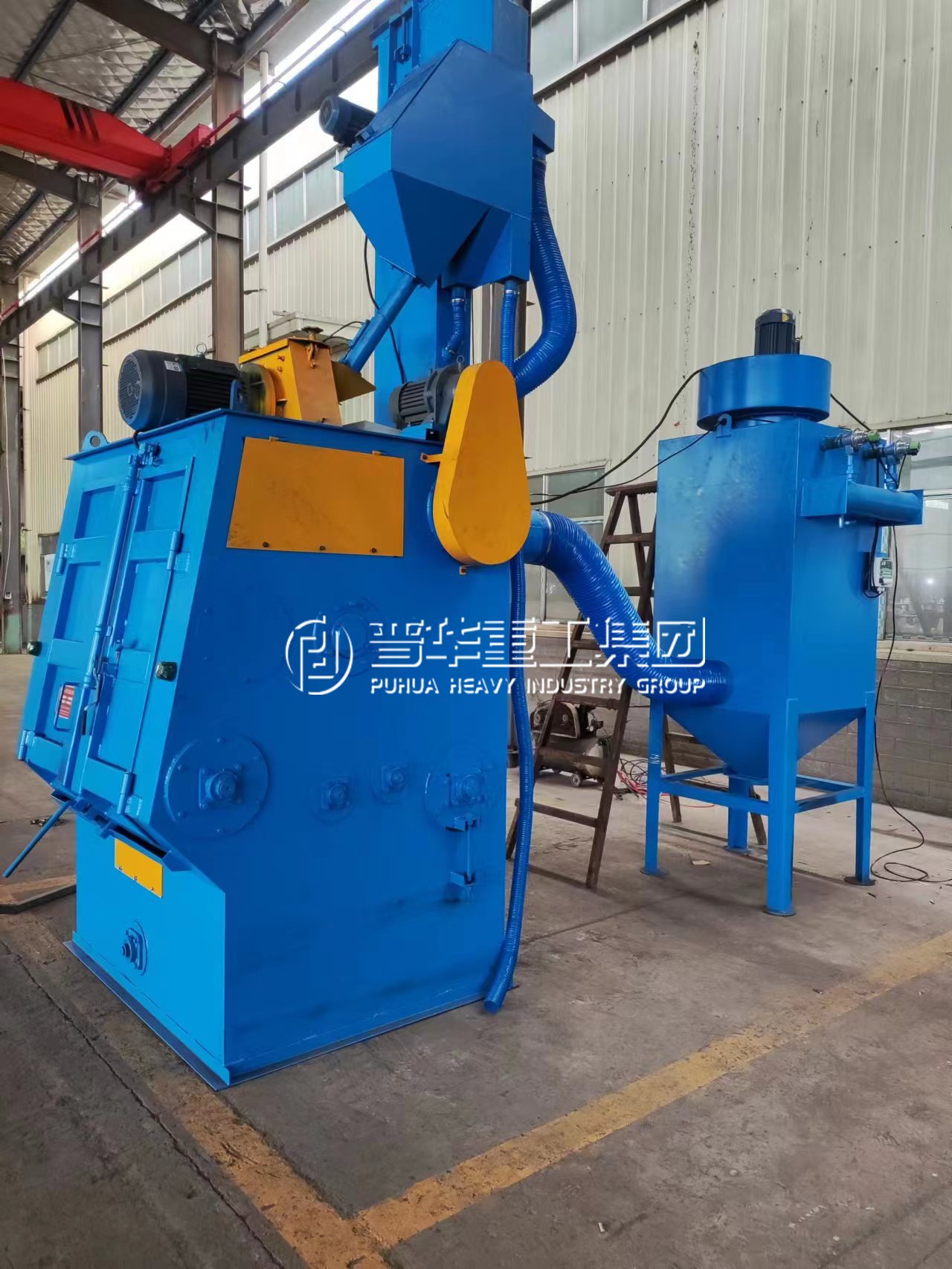

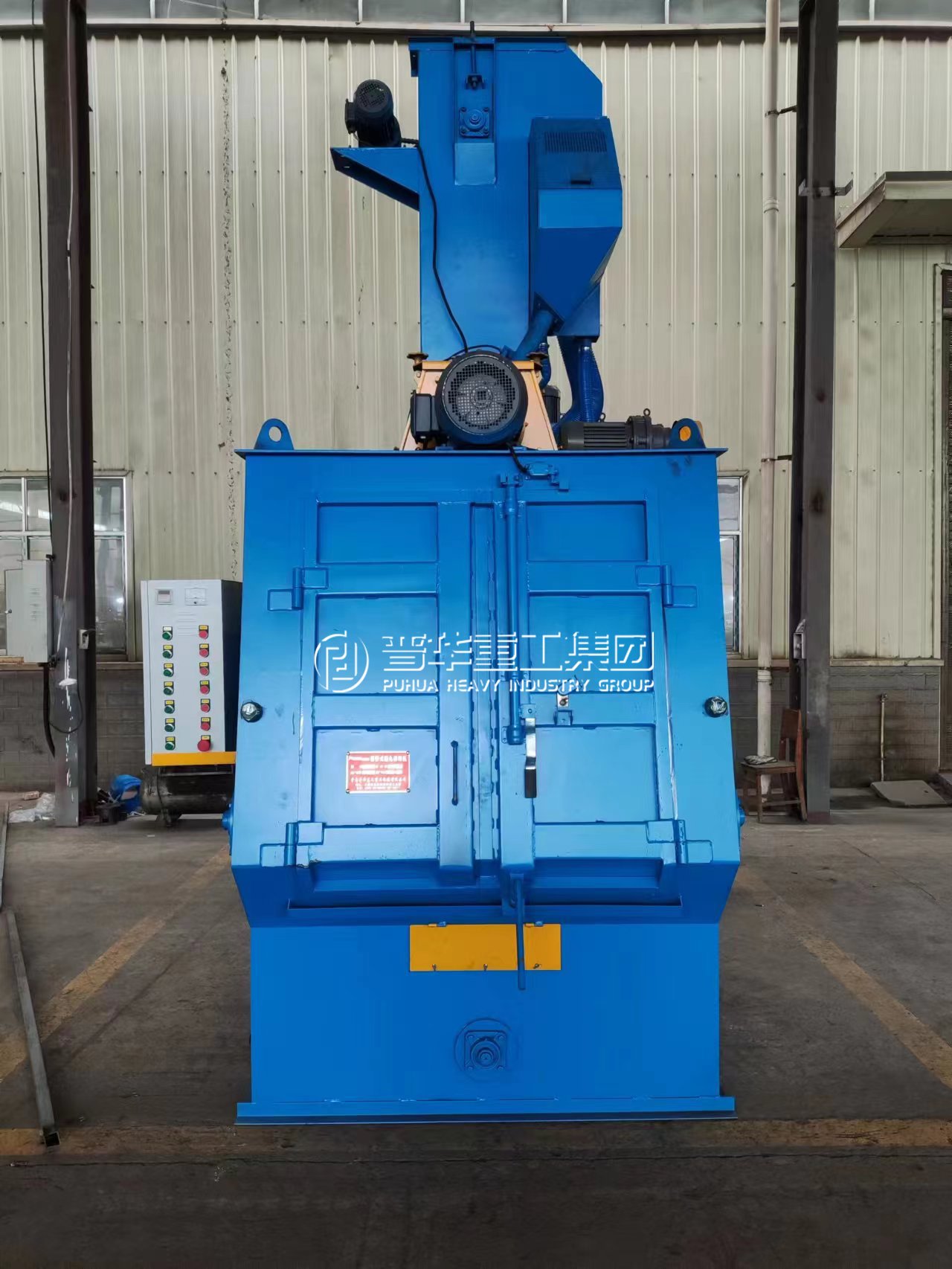

These pictures will better help you understand tumble blast machine.
3. Certification of tumble blast machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality 关键词, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation tumble blast machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of tumble blast machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by tumble blast machine?
surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
