Tumble belt shot blasting machine rubber track shot blasting machine with good cleaning quality, time is short, compact, low noise, good sets of advantages. Mainly applicable to all walks of life in the castings, forgings, aluminum parts, stamping parts, gears and springs of sand, rust, descaling and surface strengthening, but also applies to all kinds of hardware tools. Especially for fear of touching the parts, cleaning and strengthening is more applicable. Crawler-type shot blasting machine for different production scale, both stand-alone use, can also be multi-use. And continuous conveyor, such as supporting the production of clean-up assembly line, is the ideal clean-up equipment for large and medium-sized clean-up.
1.Introduction of tumble belt shot blasting machine
Tumble belt shot blasting machine rubber track shot blasting machine with good cleaning quality, time is short, compact, low noise, good sets of advantages. Mainly applicable to all walks of life in the castings, forgings, aluminum parts, stamping parts, gears and springs of sand, rust, descaling and surface strengthening, but also applies to all kinds of hardware tools. Especially for fear of touching the parts, cleaning and strengthening is more applicable. Crawler-type shot blasting machine for different production scale, both stand-alone use, can also be multi-use. And continuous conveyor, such as supporting the production of clean-up assembly line, is the ideal clean-up equipment for large and medium-sized clean-up.
2. Specification of tumble belt shot blasting machine
Type | Q326 | Q3210 | QR3210 |
Productivity(T/h) | 0.6-1.2 | 3-5 | 1.5-2.5 |
Loading weight(kg) | 200 | 800 | 600 |
The maximum weight of one piece | 10 | 30 | 30 |
Diameter of roller(mm) | φ650 | φ1000 | φ1000 |
Available capacity(m³) | 0.15 | 0.4 | 0.3 |
Pill impelling volume(kg/min) | 125 | 360 | 250 |
Dedusting air volume(m³/h) | 2200 | 6000 | 5000 |
Power dissipation(kw) | 12.6 | 32.6 | 24.3 |
Appearance dimension(mm) | 3200*1520*3500 | 4290*1900*4500 | 5850*1950*4600 |
We can design and manufacture all kinds of non-standard tumble belt shot blasting machine according to customer different workpiece detail requirement,weight and productivity.

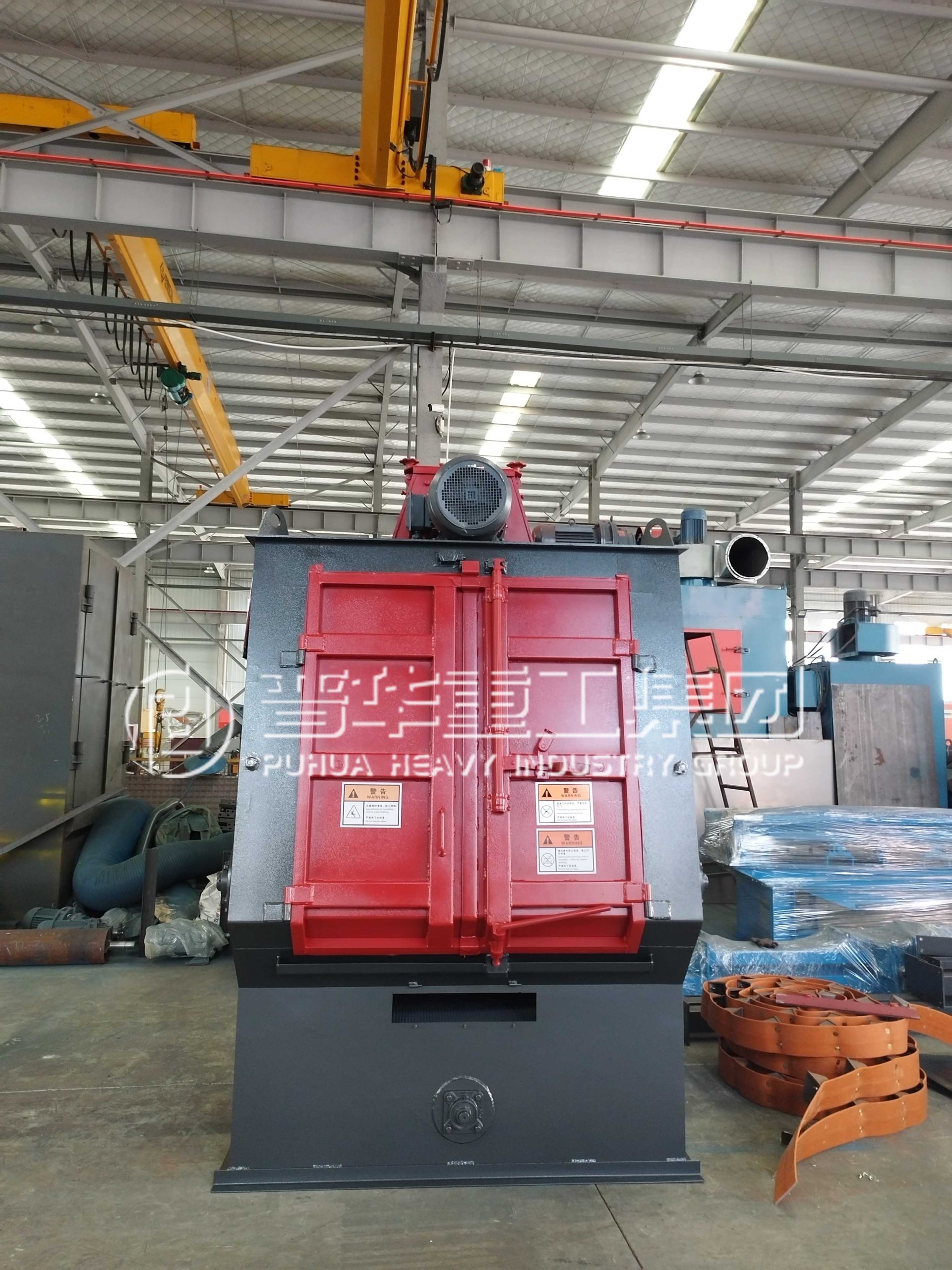

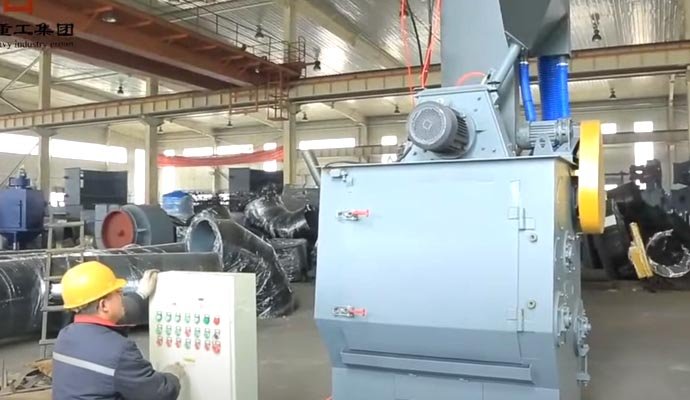

2. Details of tumble belt shot blasting machine
These pictures will better help you understand tumble belt shot blasting machine.
3. Certification of tumble belt shot blasting machine
Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality tumble belt shot blasting machine, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.
6.FAQ
"1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation tumble belt shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of tumble belt shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by tumble belt shot blasting machine?
surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized,usually 0.5-1.5 m/min
9. What clean grade?
Sa2.5 metal luster
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff."
